Views: 2 Author: Greenport Publish Time: 2026-07-30 Origin: Greenport marketing dept.

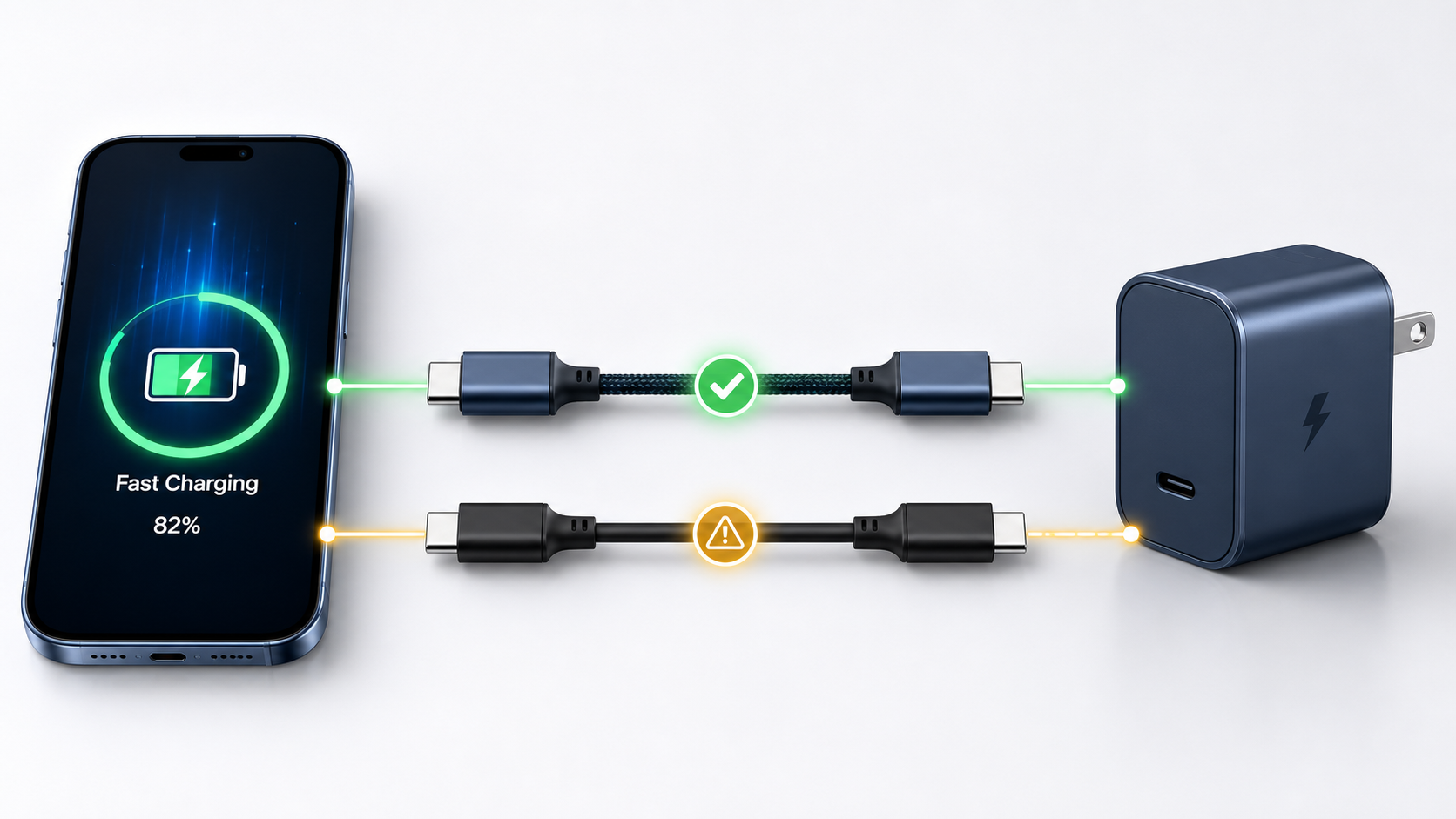

You replace your old charging cable with a new USB-C cable, PD fast charging cable, or “universal protocol” cable. The connector fits, the phone begins charging, but the fast charging icon disappears.
In most cases, the phone is not faulty. The replacement cable may not support the required current, wattage, cable identification, or proprietary charging system.
The short answer is:
Fast charging only works when the phone, charger, cable, connector, and charging protocol are compatible with one another.
If one part of this charging chain does not meet the required specification, the phone and charger normally fall back to a lower and safer charging speed.

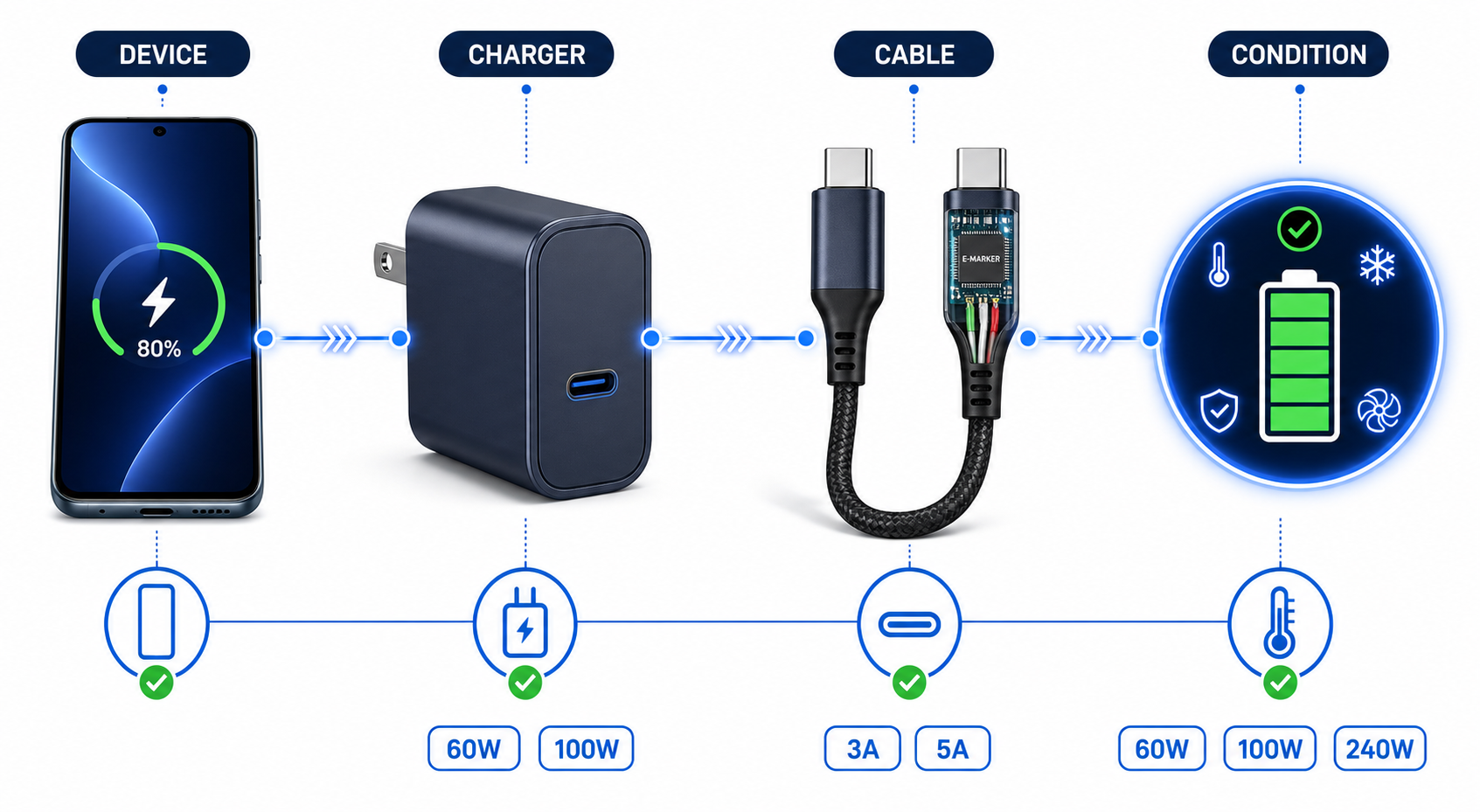

A fast charging setup has four essential components:
A phone or device that supports fast charging
A charger that supports a compatible charging protocol
A cable capable of carrying the required current and power
Suitable charging conditions, including a safe device temperature
A cable cannot make a phone charge faster than the maximum charging power supported by the phone. It can, however, prevent the phone from reaching that maximum power.
For example, connecting a high-power charger to a phone with an unsuitable cable may result in standard charging, slow charging, unstable charging, or repeated disconnections.
Charging cables have different current and power ratings.
Common USB-C cable ratings include:
Cable rating | Typical applications |
|---|---|
3A or up to 60W | Phones, tablets, power banks and some lightweight laptops |
5A or up to 100W | High-power phones, tablets, docking stations and laptops |
5A or up to 240W | USB PD 3.1 EPR devices and high-power laptops |
5A or 6A proprietary cable | Selected brand-specific phone charging systems |
If a device requires a 5A cable to activate its highest charging mode, a standard 3A cable may still charge the device but at a lower power.
The cable’s maximum power is a capacity limit, not a guaranteed charging speed. A 100W cable does not automatically make every connected phone charge at 100W.
A compliant USB-C cable rated for 5A operation uses an electronic identification component commonly known as an E-Marker.
The E-Marker communicates information about the cable’s capabilities. This allows compatible chargers and devices to confirm that the cable can safely carry the requested current.
If the cable does not contain the required E-Marker, reports incorrect information, or fails to communicate properly, the charger may restrict the available current.
When purchasing a 100W or 240W USB-C cable, look for clear information about:
Maximum current
Maximum power
E-Marker support
USB-IF certification, if applicable
Compatible devices and charging systems
A wattage number printed on a package is not enough to confirm actual compatibility.
USB Power Delivery, PPS, Quick Charge, UFCS, SCP, FCP, VOOC and other charging systems are not interchangeable in every situation.
Some phones support standard USB PD charging but require a proprietary charger and cable to reach the brand’s maximum advertised power.
For example, a phone might reach a moderate charging speed with a standard USB-C PD cable but require a brand-specific 5A or 6A cable for its highest charging mode.
This is why a replacement cable can charge the phone normally without activating Super Fast Charging, Flash Charging, Turbo Charging or another brand-specific mode.
The phrase “universal protocol cable” or “all-protocol charging cable” is commonly used in product marketing. It is not a single official certification that guarantees maximum fast charging for every phone.
A cable marketed as universal may work with many chargers and devices. However, it may not support every proprietary identification method, current level or connector configuration.
Before choosing such a cable, verify the actual specifications:
USB-A to USB-C or USB-C to USB-C
Rated current
Maximum power
E-Marker availability
Supported device brands
Supported phone models
USB PD or PPS compatibility
Proprietary fast charging compatibility
If a product page only says “universal fast charging” without listing these details, maximum charging performance cannot be guaranteed.
USB-A to USB-C and USB-C to USB-C cables do not always activate the same charging mode.
Many standard USB PD and PPS chargers use USB-C output and require a USB-C to USB-C cable. Some proprietary phone charging systems use a USB-A charger port with a specially designed USB-A to USB-C cable.
A phone having a USB-C port does not mean that every cable with a USB-C connector provides the same charging features.
The physical connector, internal wiring and charging protocol must all be compatible.
Cable length, conductor size, connector quality and manufacturing quality affect electrical resistance.
A cable with excessive resistance can create a larger voltage drop under load. When the phone or charger detects an unstable voltage, it may reduce the charging current.
Possible symptoms include:
Fast charging starts and then stops
The charging icon repeatedly connects and disconnects
The connector becomes unusually warm
Charging is significantly slower than with the original cable
Charging speed changes when the cable is moved
A thicker cable is not automatically better. The internal conductors, connector construction and verified electrical specifications matter more than appearance alone.

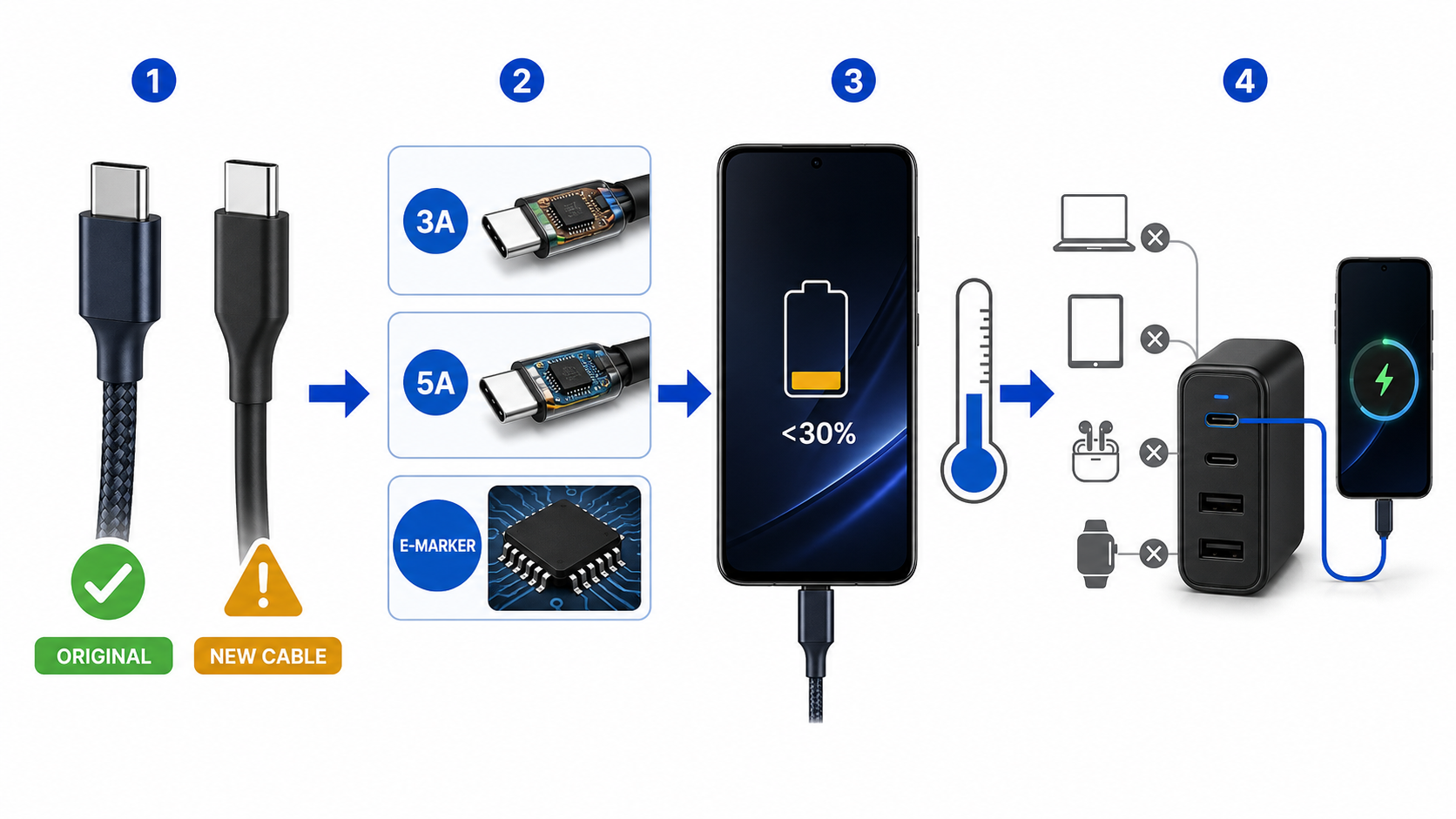

Follow these steps in order. Change only one component at a time so that you can identify the actual cause.
Reconnect the charger and cable supplied with the device, if they are still available.
If fast charging returns, the phone and charger are probably functioning normally. The replacement cable is the most likely cause.
If the original combination also fails to fast charge, investigate the charger, device port, temperature, battery settings and battery condition.
Use the same charger for both tests:
Test with the original cable.
Record the charging indicator.
Replace only the cable.
Test again under the same conditions.
If the original cable activates fast charging and the replacement cable does not, check the replacement cable’s current rating, wattage, E-Marker and protocol compatibility.
Avoid replacing both the charger and cable at the same time. Doing so makes it difficult to determine which component is responsible.
Charging power changes throughout the battery cycle.
A phone may accept higher power at a low battery level and gradually reduce charging power as the battery becomes full. Testing at 80% or 90% battery may not show the maximum charging performance.
For a more useful comparison:
Begin below approximately 30% battery
Allow the phone to return to a normal temperature
Close games and high-power applications
Use the same charger and wall outlet
Compare the cables under similar conditions
Depending on the device, the screen may display:
Charging
Fast charging
Super fast charging
Flash charging
Turbo charging
Slow charger
Charger power too low
The exact wording varies between brands and models.
The absence of a fast charging animation does not always provide a precise power measurement, but it is a useful indication that the expected charging mode has not been activated.
For a more detailed test, a compatible USB power meter can measure charging voltage, current and approximate input power.
Look at the cable packaging, product page or technical datasheet.
Confirm the following information:
Maximum current, such as 3A or 5A
Maximum power, such as 60W, 100W or 240W
E-Marker support
USB PD or PPS compatibility
Proprietary charging compatibility
USB-A to USB-C or USB-C to USB-C configuration
Compatible phone, tablet and laptop models
If the manufacturer does not provide these specifications, do not assume that the cable supports maximum fast charging.
A contaminated or damaged connector can prevent a stable electrical connection.
Check for:
Dust or lint inside the device port
Bent or damaged connector contacts
Oxidation or discoloration
A loose-fitting plug
Cracks near the cable connector
Exposed conductors
Abnormal heat
Repeated charging interruptions
Turn the device off before inspecting its charging port. Do not use a metal pin to clean the port because it may damage the contacts or create a short circuit.
Stop using any cable that has exposed conductors, severe damage, a burned connector or abnormal overheating.
A multi-port charger may redistribute its output when several devices are connected.
For example, a charger advertised as 100W may provide its maximum power through only one port. Connecting a second device may reduce the power available to the phone or laptop.
To test the cable accurately:
Disconnect all other devices.
Connect the phone to the charger’s designated high-power port.
Reconnect the cable to restart protocol negotiation.
Check whether fast charging returns.
Symptom | Most likely cause | Recommended action |
Original cable fast charges, but the new cable does not | Cable current, power or protocol mismatch | Check the cable rating, E-Marker and compatible models |
No cable activates fast charging | Charger, phone port, settings, temperature or battery problem | Test another compatible charger and inspect the device |
Fast charging starts but soon becomes slow | High temperature or rising battery level | Cool the phone and test again at a low battery level |
Fast charging stops when another device is connected | Multi-port charger power redistribution | Disconnect other devices or use a different port |
The cable charges but cannot transfer files | Charge-only cable or USB mode setting | Use a data-capable cable and select File Transfer |
Charging repeatedly connects and disconnects | Damaged cable, dirty port or loose connector | Clean the port safely or replace the cable |
The phone fast charges, but the laptop reports a slow charger | Cable or adapter power is too low | Use a 5A cable and charger that meet the laptop’s requirements |
One phone fast charges but another does not | Different charging protocols | Check the protocol supported by each phone |
The cable rating should meet or exceed the device’s charging requirements.
Examples:
A phone with a maximum input below 30W can generally use a compliant 60W cable.
A device requiring more than 3A may need a 5A E-Marked cable.
A 65W or 100W laptop requires both a suitable charger and a cable rated for the required power.
A phone using proprietary 5A or 6A charging may require a compatible brand-specific cable.
Using a higher-rated compliant cable is generally safe because compatible devices negotiate the charging power. The phone only requests the voltage and current it supports.
Check the official specifications of the phone before choosing a charger or cable.
Identify whether the device uses:
USB Power Delivery
PPS
Quick Charge
UFCS
A proprietary brand charging system
More than one supported system at different power levels
To obtain the manufacturer’s maximum advertised charging power, the safest option is usually the original charger and cable or a third-party product that clearly lists the exact protocol and phone model.
Some chargers have several ports with different capabilities.
A charger may include:
One high-power USB-C port
One lower-power USB-C port
One USB-A fast charging port
Shared power between multiple outputs
Read the output information printed on the charger or listed in its manual. Connect the device to the port that supports the required protocol and power.
Phones reduce charging power when the battery or internal components become too warm.
If the phone is hot:
Stop gaming or recording video
Close demanding applications
Remove an excessively thick case
Place the phone in a cool, ventilated location
Wait for the temperature to return to normal
Do not place the phone in a refrigerator or directly against ice. Condensation can damage the device.
Some phones include settings such as:
Fast charging
Optimized charging
Smart charging
Night charging protection
Battery health protection
Charging limit
These features may change the charging speed or temporarily pause charging.
Review the device’s battery settings, but do not permanently disable useful battery protection features simply to maintain maximum charging speed.
Use this compatibility rule:
The phone and charger must share a compatible charging protocol, while the cable must support the required current, power and identification method.
Before buying a replacement cable, confirm:
The phone’s maximum charging power
The phone’s supported charging protocols
The charger’s output protocol and power
The cable’s maximum current and wattage
Whether the cable includes an E-Marker
Whether a proprietary cable is required
Whether the exact phone model appears in the compatibility list
Do not judge compatibility by the USB-C connector alone. Two cables with identical-looking connectors can have very different charging, data and video capabilities.
Yes. A compliant 100W cable can be used with a 20W phone. The 100W rating is the cable’s maximum capacity, not the amount of power it forces into the phone.
The phone and charger negotiate an appropriate charging level.
Not necessarily. If the phone supports a maximum of 30W, replacing a 60W cable with a 240W cable will not increase the phone’s limit beyond 30W.
A higher-rated cable is useful when the existing cable cannot meet the required current or when it will also be used with higher-power devices.
It may charge most USB-C phones, but it may not activate every manufacturer’s maximum proprietary fast charging mode.
The phone, charger and cable must support a compatible charging method. Some devices fall back to standard PD or basic charging when the original proprietary cable is not used.
No. USB-C describes the connector type, not the complete charging capability.
A USB-C cable may support basic charging, 60W, 100W or 240W. It may also support different data speeds, and it may or may not support video output.
No. A larger outside diameter does not prove that the internal conductors are suitable for high-current charging.
Check the verified current rating, power rating, E-Marker, connector quality and certification instead of relying on appearance.
Possible causes include:
The charger cannot provide enough power
The wrong charger port is being used
The cable does not actually meet its advertised rating
The charger does not provide the voltage required by the laptop
Power is being shared with another connected device
The laptop does not support charging through that particular USB-C port
Yes. Charging power and data speed are separate specifications.
A cable may support high-power charging while providing only USB 2.0 data speeds. Another cable may support high-speed data and video output but have a different power rating.
Always check charging power and data speed separately.
If fast charging stopped after replacing the cable, check these items in order:
Test the original charger and original cable.
Keep the charger unchanged and replace only the cable.
Test below 30% battery at a normal device temperature.
Confirm the cable’s current and power ratings.
Confirm whether a 5A E-Marked cable is required.
Match the phone and charger protocols.
Verify the USB-A or USB-C charger port.
Disconnect other devices from a multi-port charger.
Inspect the cable and charging port for damage.
Replace cables that overheat or repeatedly disconnect.
The most important lesson is that connector shape alone does not determine charging compatibility.
A reliable fast charging cable should provide clear information about its connector type, current rating, maximum power, E-Marker and supported devices. If a product is advertised only as a “fast charging cable” or “universal protocol cable” without technical specifications, maximum charging compatibility cannot be guaranteed.
