YW14
Greenport
YW14 Qi2.2 Retractable Mini 3 in 1 Square Wireless Charger
A Qi2.2 certified 3 in 1 wireless charger (QI-ID 27196) that charges a phone at up to 25W, earbuds at 5W and a smartwatch at 2.5W at the same time. The built-in retractable USB-C cable also delivers up to 27W to a wired device.
Key Features

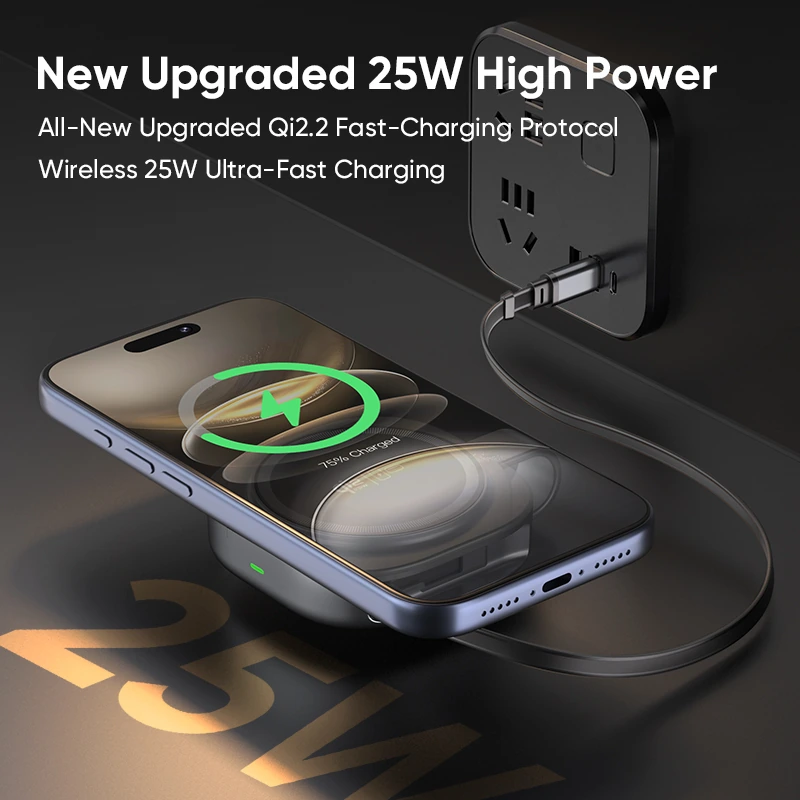

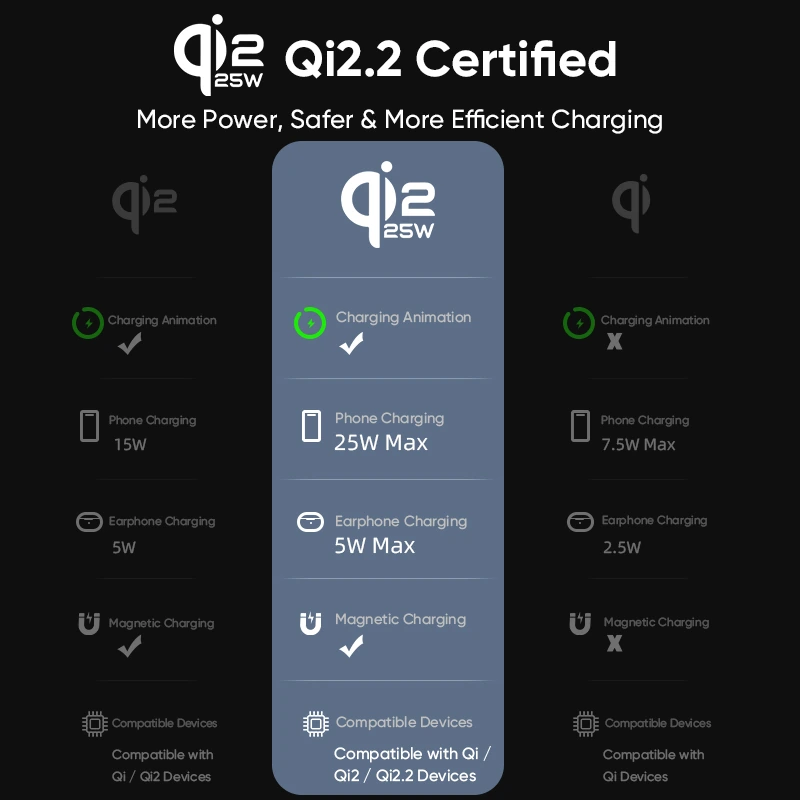

1. Qi2.2 certified, 25W max magnetic phone charging, backward compatible with Qi2 and Qi devices

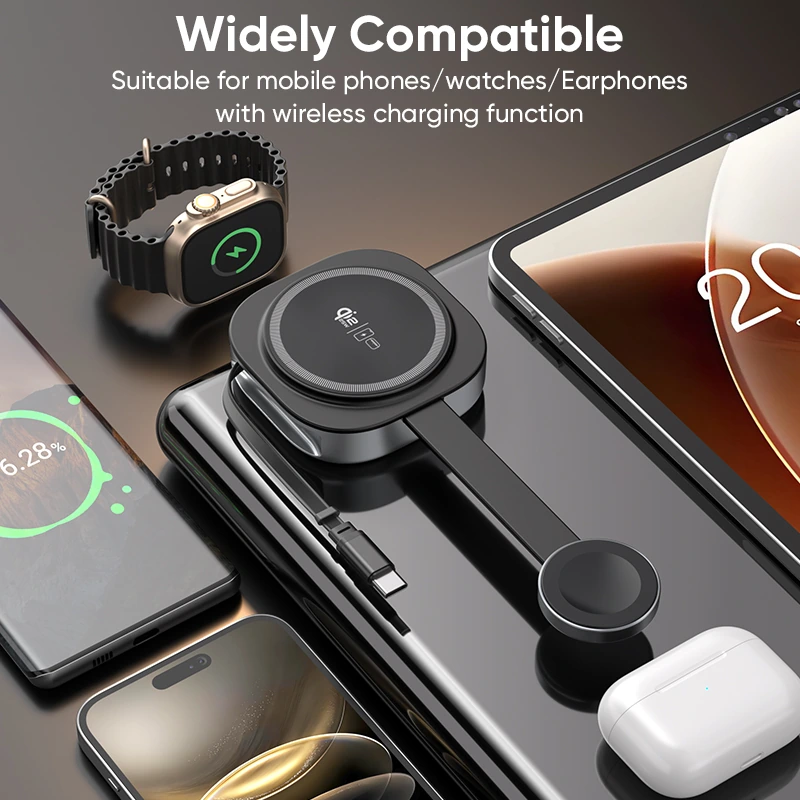

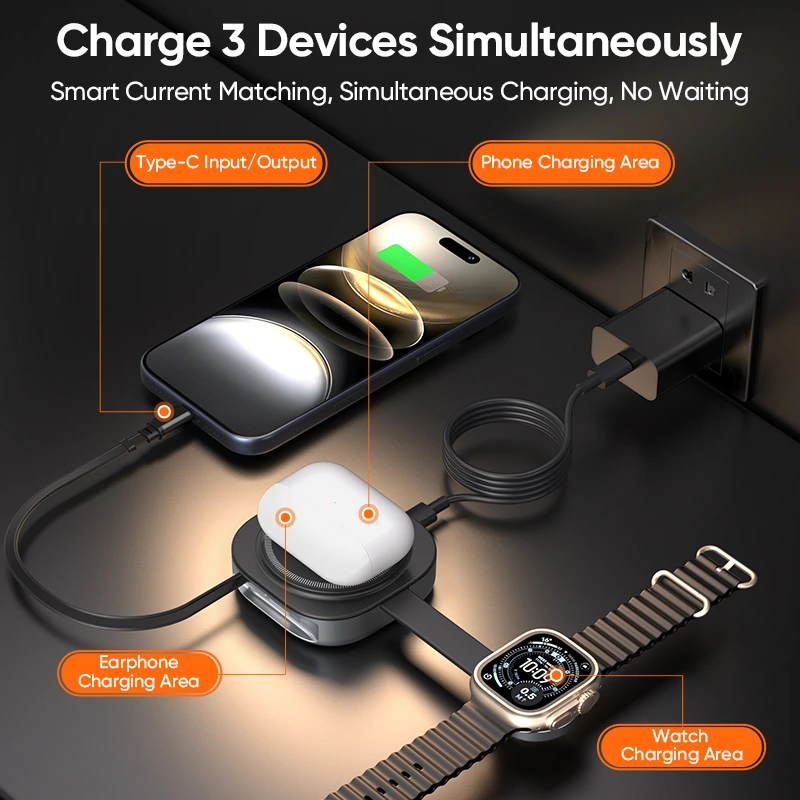

2. Charges 3 devices at once: phone 25W, earbuds 5W, smartwatch 2.5W
3. Built-in 80cm free-stop retractable USB-C cable with 27W max output
4. Foldable square design, compact enough for desk, bedside and travel bag

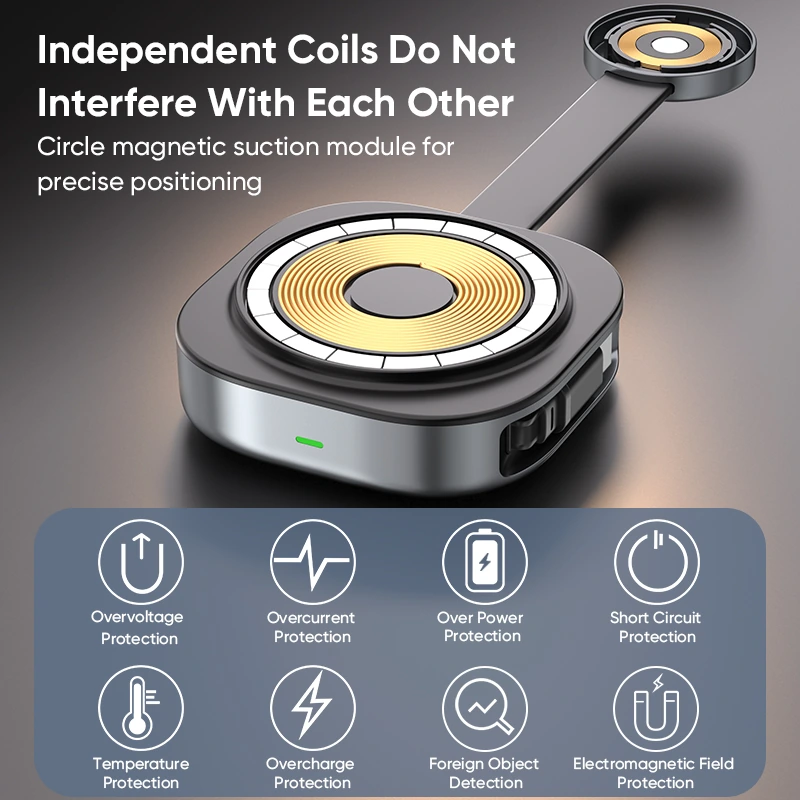

5. Independent coils with no interference between devices
6. Protection: over-voltage, over-current, over-power, short-circuit, over-temperature, foreign object detection
Specifications
Model: YW14 (Square)
Input: 9V-2A, 9V-3A, 12V=2.25A, 15V=3A
Type-C Cable Output: 27W (Max)
Phone Output: Qi2.2 version, 25W (Max)
Watch Output: 2.5W
Earphone Output: 5W

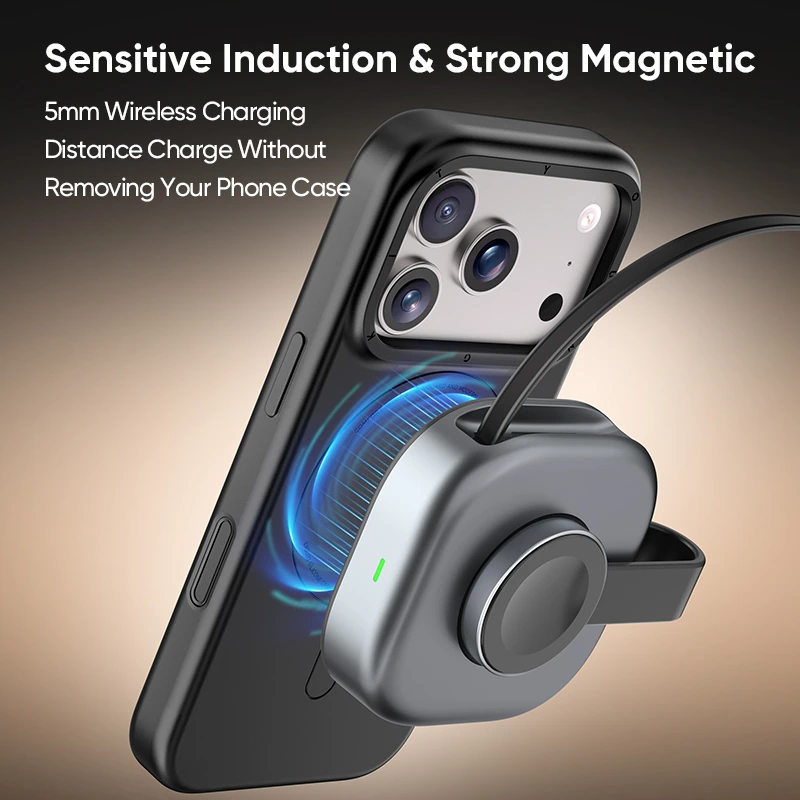

Charging Distance: 3mm-5mm
Charging Efficiency: 75% or above
Working Frequency: 100-205KHz
Material: ABS + Zinc Alloy + Aluminum Alloy
Color: Black
OEM / ODM
Logo printing, custom packaging and color options are available. Send us your quantity and target market and we will reply with a quotation and lead time.
